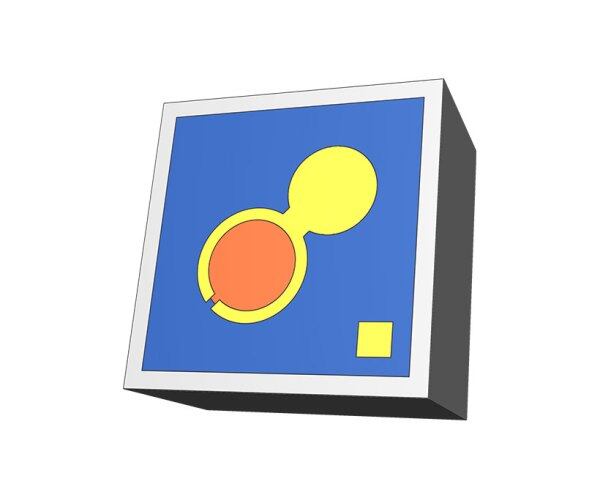

2.5Gbps Φ70μm Digital/Analog PIN PD Chip

The 2.5Gbps Photodiode Chip is InGaAs/InP planar PIN structure and top-illuminated digital/analog PD chip, active area size is Φ70μm. That features is low dark current, low capacitance, high responsivity, lower second order inter-modulation distortion (IMD2) and composite triple beat distortion (CTB), excellent reliability. Application in 2.5Gbps and below analog receiver and EPON ONU.

Features

1. Φ70μm active area.
2. Low Second order inter-modulation distortion (IMD2) and composite triple beat distortion (CTB).
3. High linearity and high responsivity.
4. Low dark current.
5. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE.
6. 100% testing and inspection.

Applications

1. ≤2.5Gbps date rate receiver module.
2. EPON ONU.
3. CATV Analog optical receiver.
