LiDAR Sensor Chip

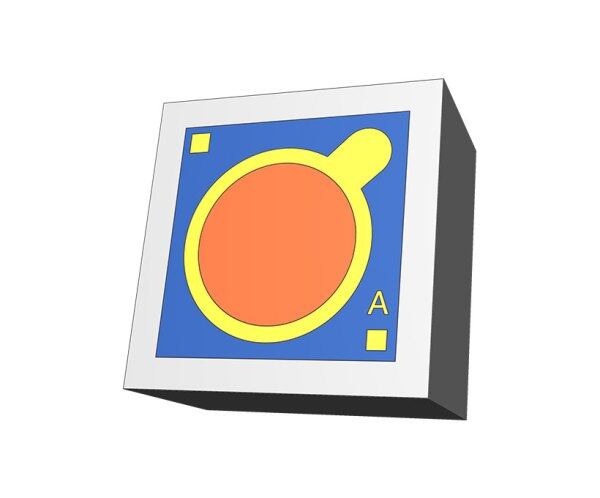

Avalanche chotodiode chip (APD chip) is a kind of active device that provides a built-in gain and amplifies the photocurrent. This product features is anode on top and cathode on back, with top-illuminated active area size is Φ200μm for easy optical assembly; high responsivity and low dark current. The high-performance 1.25Gbps APD chip package for single tube TO-CAN can improve the sensitivity of optical receiver, applications that OTDR.

Features

1. Φ200μm active area.
2. Anode on top and cathode on back.
3. Low dark current.
4. Excellent responsivity and high gain.
5. Data rate up to 1.25Gbps above.
6. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE.
7. 100% testing and inspection.

Applications

1. Optical Time Domain Reflectometer(OTDR).
2. Laser range finder/Distance measurement.
3. Space optical transmission.
4. Low-light-level detection.
5. Laser alarming and LIDAR.
